Name: P6 Outdoor Fixed Led Display IP65 Waterproof 768x768mm Die Casting Cabinet
Brand: LONGRUN
Price: 1 USD

Brand Name : LONGRUN

Model Number : BH3 , BH3.8 , BH6

Place of Origin : GuangDong

MOQ : 4

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500

Delivery Time : 15days

Packaging Details : Woodencase/Plywood case

Application : outdoor advertising

Pixel Pitch : 3mm , 3.8mm , 6mm

Panel Size : 192mm*192mm

Screen Dimension : 768mmx768mm , 576mmx576mm

Brightness : 6300~6600cd/sqm

Grey Scale : 14Bit

Refresh Rate : 1920HZ

Scanning Mode : 1/16 , 1/13 , 1/4

Contact Now

P3 P3.8 P6 Outdoor Fixed Led Display Waterproof 768x768mm 576x576mm Rental Die-Casting Cabinet

2, Product Description

192x192mm compatible pitch: 3, 3.8, 6

The default cabinet size is 768x768mm, it can also be customized.

The back cover is made of a silicone ring, and the water guide belt is designed to be waterproof, which can quickly flow out the liquid.

The protection grade is IP65, which can meet various outdoor scenarios.

3, Specifications

Model No.	BH3	BH3.8	BH6
Pixel Pitch	3	3.8	6
LED Lamp	SMD1415	SMD1921	SMD2727
Density	111111	67816	27777
Module Size	192x192
Module Pixel	64x64	50x50	32x32
Module Material	Plastic
Cabinet Size	768x768
Cabinet Material	Steel (Die-cast Aluminum as Optional)
Scan Rate	1/16	1/13	1/4
Flatness	≤0.3
Gray-Scale	14
Protection Level	IP65
Installation/Maintenance	Back Installation/Back Maintenance
Brightness	5000-5500 (can be customized with a black lamp)	6000-6200 (can be customized with a black lamp)	6300-6500
Horizontal/Vertical Viewing Angle	≥140°/≥120°
Contrast Ratio	≥6500:1		≥8000:1
Module Maximum Current (DC)	6A
Module Input Voltage (DC)	5V
Standard Receiving Card	MRV328

4, Aging Picture

P6 Outdoor Fixed Led Display IP65 Waterproof 768x768mm Die Casting Cabinet

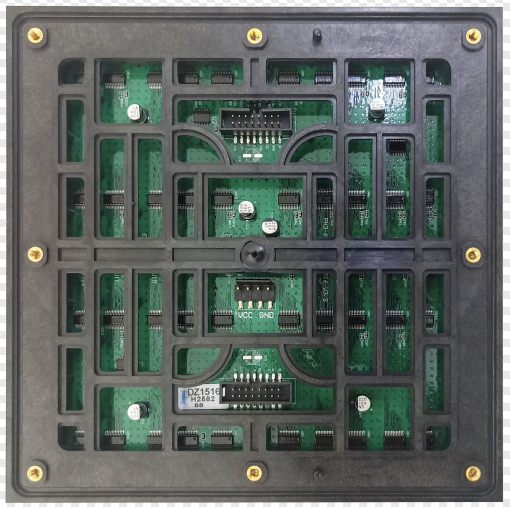

5, Module Picture

P6 Outdoor Fixed Led Display IP65 Waterproof 768x768mm Die Casting Cabinet

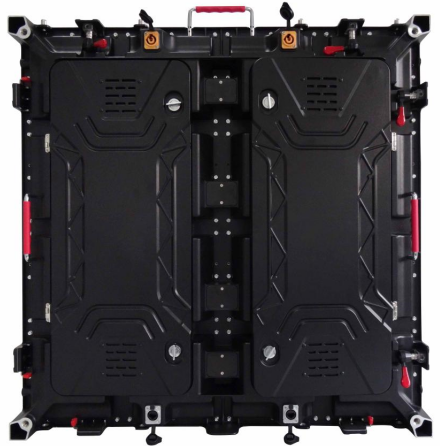

6, Cabinet Picture

P6 Outdoor Fixed Led Display IP65 Waterproof 768x768mm Die Casting Cabinet
