Wireless Smart Roadside Led Display , Outdoor Waterproof Led Advertising Panels

Name: Wireless Smart Roadside Led Display Outdoor Waterproof Led Advertising Panels
Brand: Longrun
Price: 1 USD

Place of Origin : Guangdong, China

Model Number : p8 led display

Brand Name : Longrun

MOQ : 1 Piece

Price : Negotiable

LED type : 3528SMD

Pixels per sqm : 15625 dots

Module size : 256*128mm

Brightness : 2000- 7000cd/sqm

Scan method : 1/4scan

Fresh rate : >= 1920Hz

Grey Level : 14bit

Certificate : CE,RoHS,CCC,ISO9001

Life Span : >10,000hours

View distance : 8~70m

Usage : OUTDOOR

Display Function : Video

Screen Dimension : custom size

Tube Chip Color : FULL COLOR

Pixels : 8mm

Selling Units : Single item

Single package size : 126X26X205 cm

Single gross weight : 120.0 kg

Package Type : outdoor led display packing: *honeycomb carton is for fixed installation *flightcase packing is for rental use

Contact Now

Wireless Smart Roadside Led Display , Outdoor Waterproof Led Advertising Panels

P8 outdoor Road Sign post LED Display Specification:

LEDS	Pixel pitch	8 mm
	Pixel configuration	1RGB
	LED type	SMD 3535
	LED manufature and origin	KN light
Cabinet	Pixel pitch	8 mm
	Pixels per sqm.	15,625 pixels
	LEDs qty. per sqm.	15,625 pcs
	LED module resolution	32 x 16
	LED module size	256mm x 128mm
	LED cabinet resolution	128(W) x 224(H) pixels
	LED cabinet dimension	Width: 1024mm Height: 1792mm Depth: 140mm
	LED cabinet area	1.84 sqm
	Brightness	6200-6500nits
	Viewing angle	Horizontal: 120º Vertical: 100º
	Grey scale (linear)	16,384 levels per color
	Display refresh rate	>1920 Hz
	Scan mode	1/4 scan
Power supply	Power consumption (max.)	800 watts/sqm.
	Power consumption (average)	260 watts/sqm.
	Input voltage	AC 110 or 220 V ± 10%

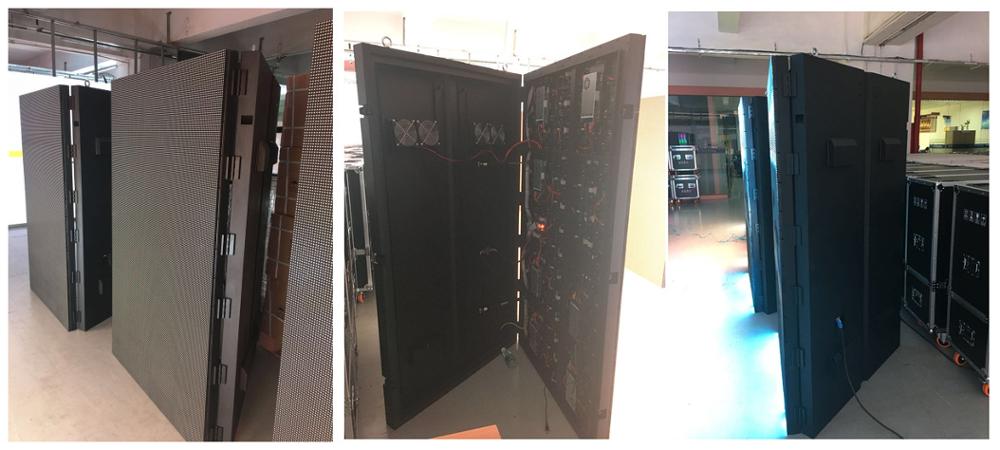

Mechnical design	LED cabinet weight	83 kgs
	Material	Iron
	Ingress protection	IP65
	Serviceability	Front service
Operation	Storage environment	Temperature: -40℃ ~ 60℃ Humidity: 10% ~ 85% RH
	Operating environmrnt	Temperature: -20℃ ~ 50℃ Humidity: 10% ~ 90% RH
	Lifespan (typical)	≥100,000 hours
	MTBF	≥10,000 hours
	Source compatibility	CVBS, YC, YUV, RGB, DVI, SDI, HD-SDI, HDMI

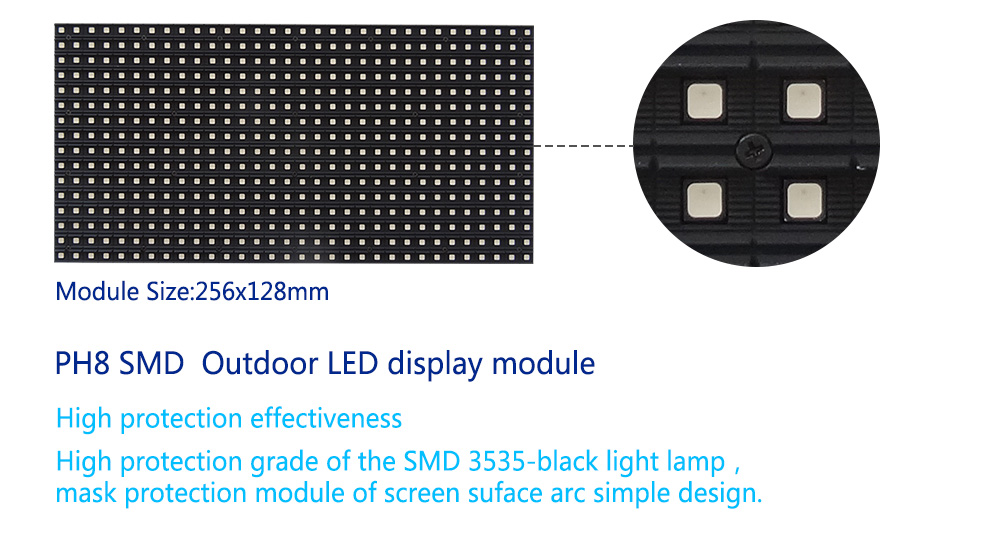

P8 outdoor Street Lamp post LED Module:LR-PH8-32*16-4SD35
Wireless Smart Roadside Led Display , Outdoor Waterproof Led Advertising Panels
We offer several Outdoor Street Lamp Post LED Display specification options from our popular standard billboard sizes to totally customized displays, we can help you select the digital signage that will fit your needs. Choose from our many Outdoor LED Video Wall specifications and sizes.
Wireless Smart Roadside Led Display , Outdoor Waterproof Led Advertising Panels
P8 outdoor Street Lamp post LED Display System Schematic: WIFI and 3G 4G control are available

P8 outdoor Road Sign post LED Display Packing:

For fixed installatin project, plywood case or cellular carton is recommended.
Wireless Smart Roadside Led Display , Outdoor Waterproof Led Advertising Panels

Shenzhen LongRun LED Factory View:

Shenzhen LongRun LED Exhibition:

FQA:

1. Your inquiry related to our products or price will be replied in 12hrs.

2. OEM&ODM,any your customized lightings we can help you to design and put into product.
3. Distributoership are offered for your unique design and some our current models.
4. Protection of your sales area,ideas of design and all your private information.
5. Best cost performance and perfect service before and after sales.
